Modeling of Bessel Beam Generation from Axicon with Round Tip

Abstract

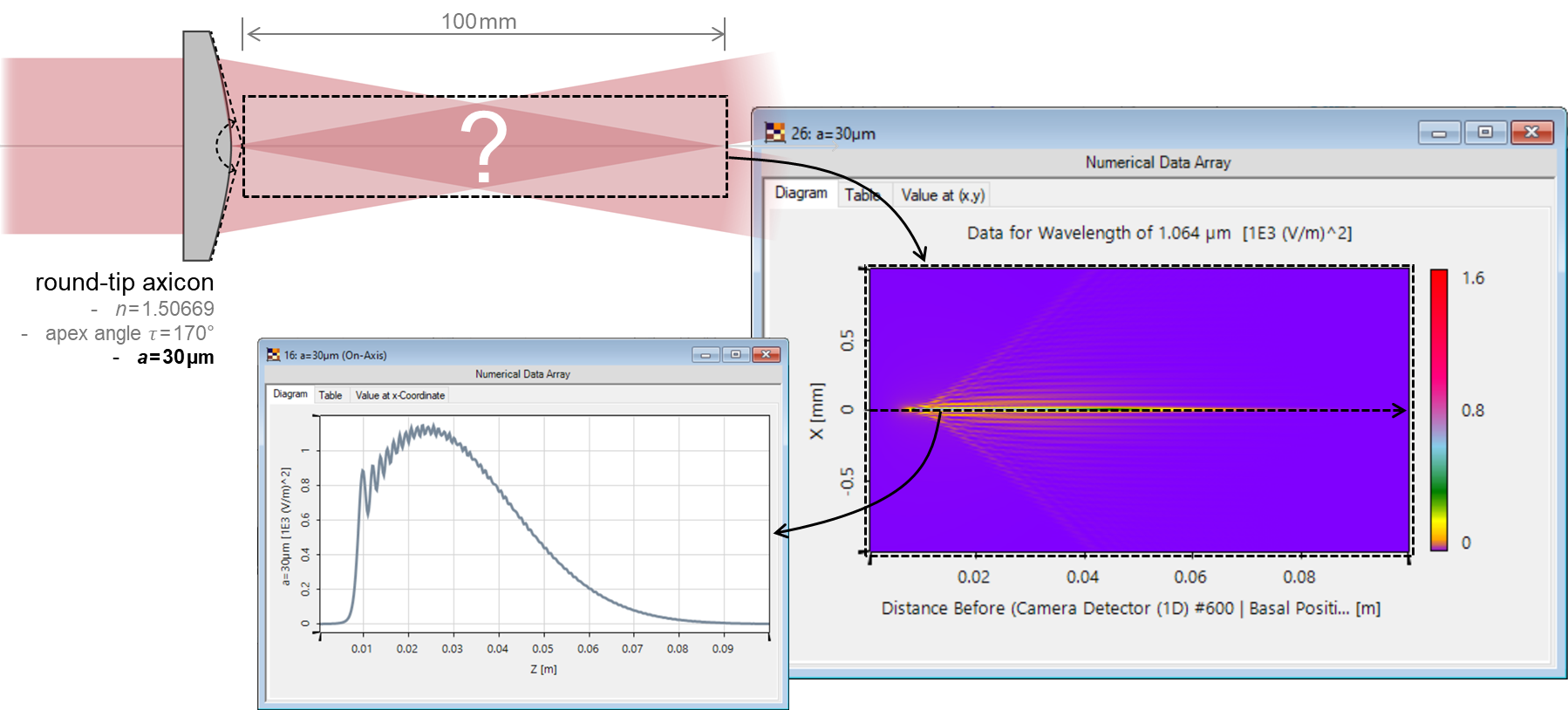

Bessel beams, due to their non-diffracting property, are drawing attentions for different applications. They are typically generated from axicons. An ideal axicon with infinite tip does not exist, and, in practice, an axicon comes with a rounded tip. In this example, we investigate the effect of the round tip on the generated Bessel beams, following the research work in [O. Brzobohatý, et al., Opt. Express 16, 12688-12700 (2008)]. Particularly, we simulate beam evolution along z and compare the results.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Use Case

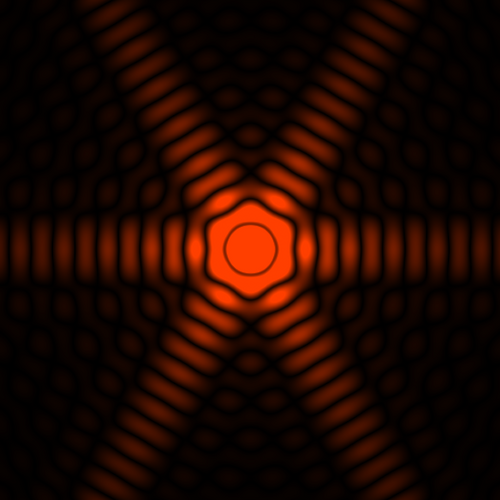

Diffraction Patterns behind Different Apertures
