Add Point Cloud to Data Array

Abstract

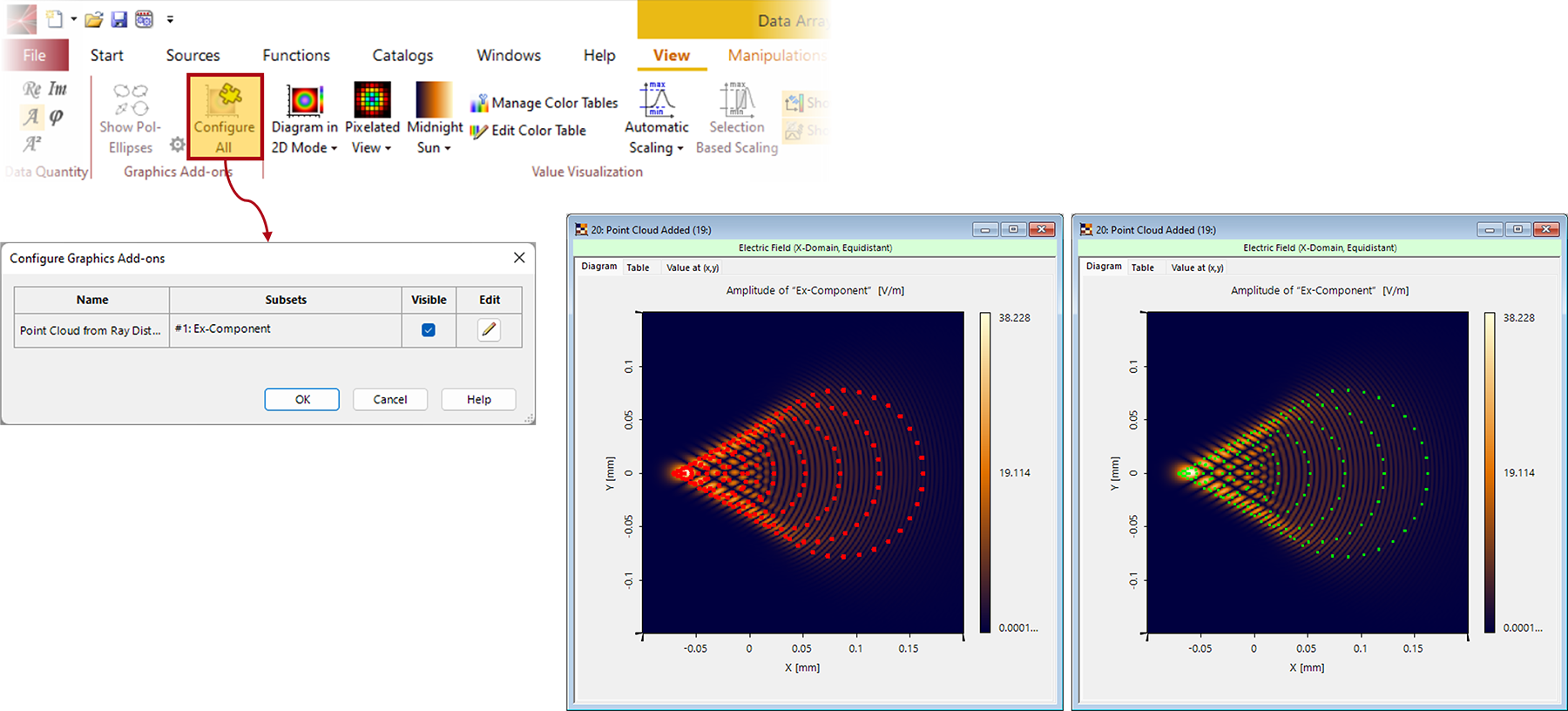

While the fast and accurate provision of simulation results is the main purpose of any optical simulation software, the ability to manipulate the visualization of the results and adjust it according to personal preference or in order to best showcase a specific set of results should not be underestimated. With this in mind, the fast physical optics software VirtualLab Fusion makes a point of providing maximum flexibility in the manipulation and configuration of displays of results. In this tutorial we want to put the spotlight on a specific graphics add-on, which allows the user to overlay a point cloud (such as a dot diagram generated by a Ray Results Profile simulation) on another result document.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Tutorial

Graphic Add-Ons

Graphics Add-Ons are a tool inside VirtualLab Fusion that allows you to overlay information, such as point clouds.
