Talbot Images of A Conical Phase Mask

Abstract

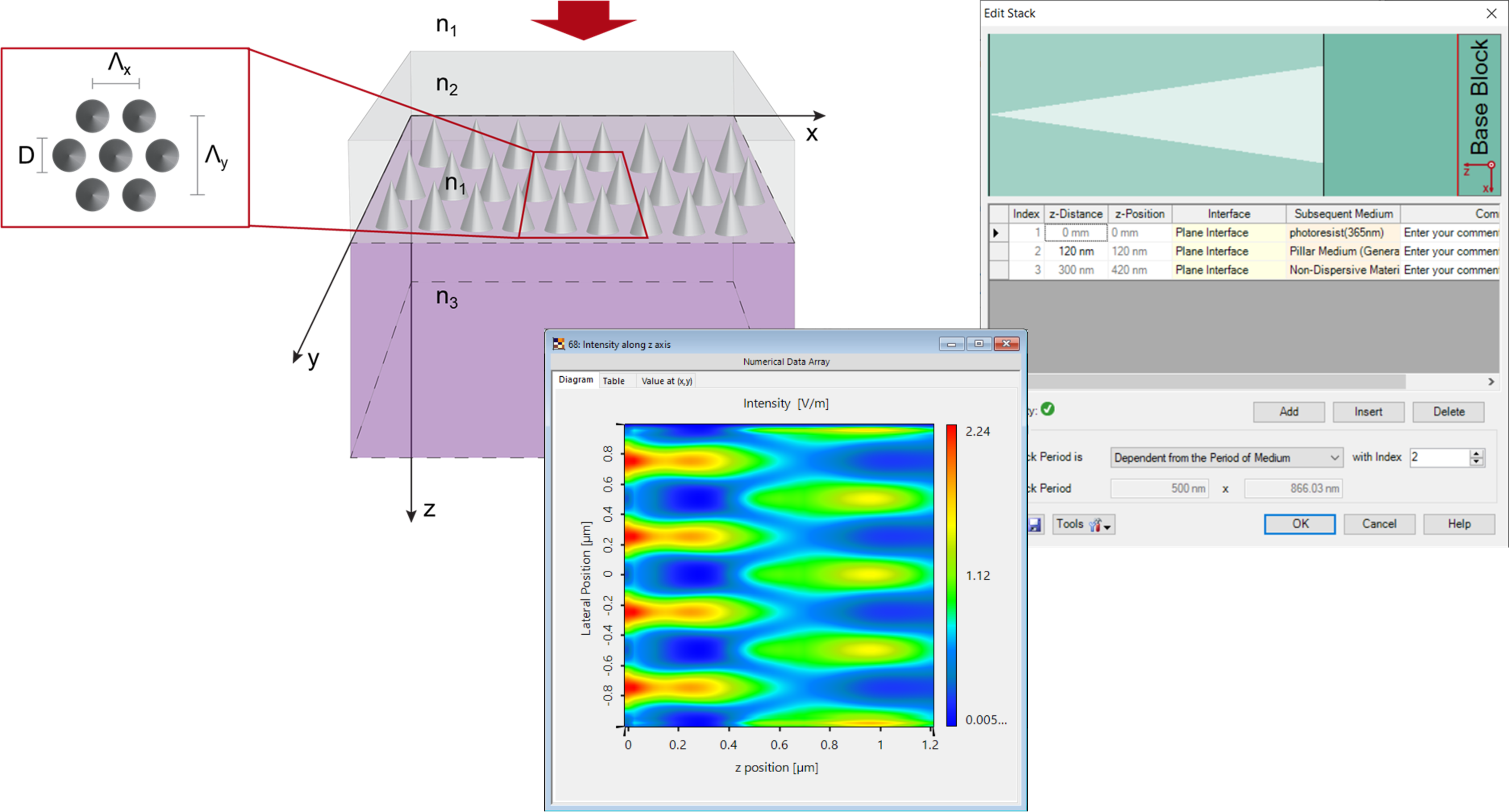

In conventional Talbot lithography, only one image is employed in the photoactive layer. However, it is possible to produce two images of the phase mask in a depth-wise manner using a special phase mask. In this example, following the work of I.-H. Lee et al., a phase mask with a layer of cones is modeled in VirtualLab Fusion with the Fourier modal method (FMM, also known as RCWA). Different Talbot images are detected, such that the pillar pattern is reproduced in the primary image plane, while the hole pattern in the secondary.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Use Case

Ultra-Sparse Dielectric Nano-Wire Grid Polarizer

The polarization-dependent properties of ultra-sparse dielectric nanowire grids are analyzed by using the Fourier modal method (FMM, also known as RCWA).

Tutorial

Grating Order Analyzer

In VirtualLab Fusion, the Grating Order Analyzer can be used for convenient grating diffraction analysis, with results presented in various ways.

Use Case

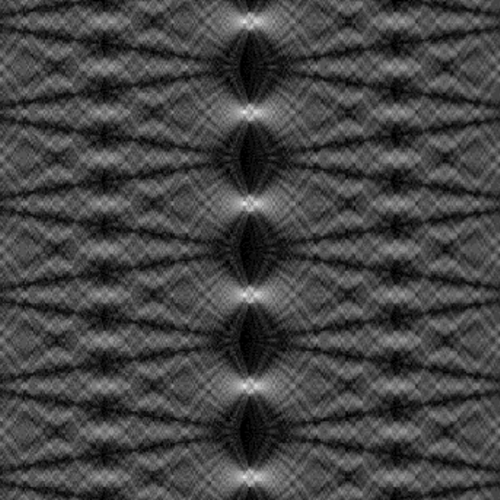

Modeling of the Talbot Effect
