Investigation of Diffraction in Interferometer Caused by Sharp Relief
Abstract

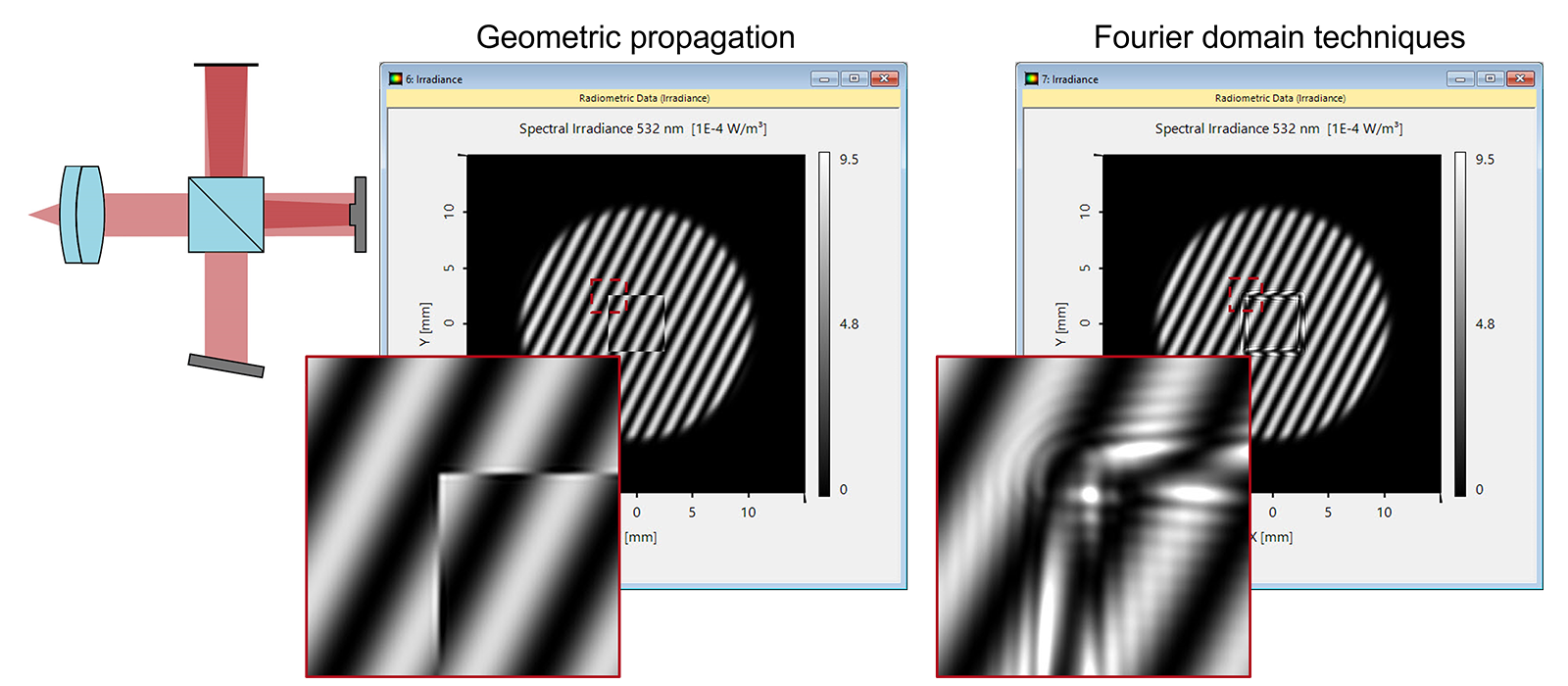

Diffraction effects introduced by apertures and edges can have a strong impact on light propagation in optical systems. VirtualLab Fusion’s platform with a rich catalog of interoperable modeling techniques allows us to include these effects in a very efficient way, but also to neglect them if desired, just with a few clicks. In this application, diffraction effects are showcased in a system with a reflective sample with a rectangular height relief in a Michelson interferometer.
VirtualLab Fusion Configuration
-
VirtualLab Fusion
Are you interested in further reading?
Tutorial
Diffractive Optical Element & Microstructure Component

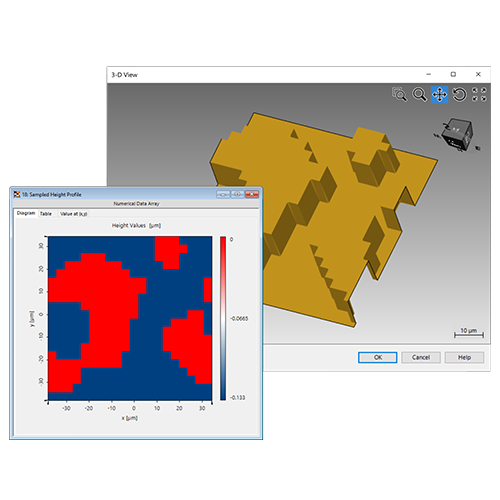

This Use Case introduces the Microstructure and Diffractive Optical Element (DOE) components and gives an overview over their options and settings.
