Mach-Zehnder Interferometer

Abstract

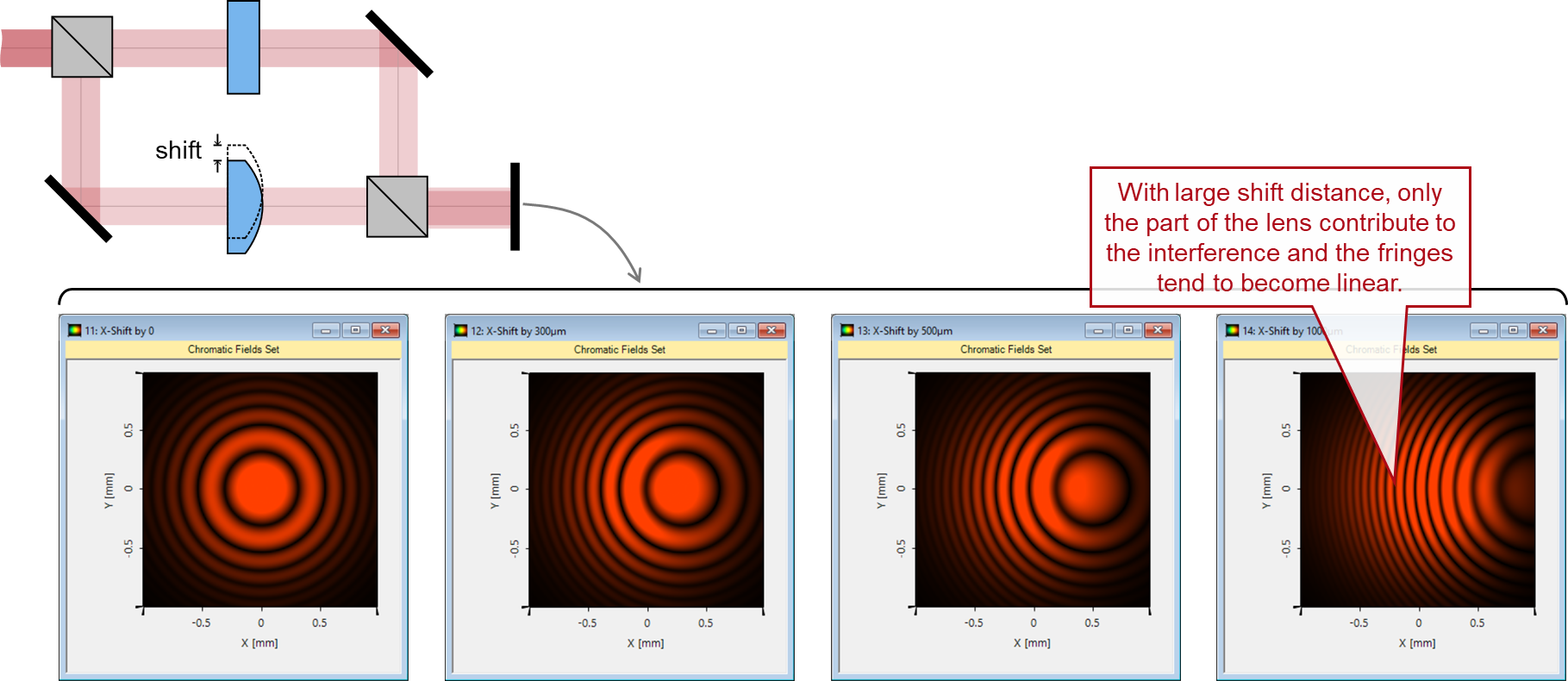

Interferometry is an important technology for optical metrology. It is widely used for the measurements of e.g. surface profile, defects, mechanical and thermal distortion with high precision. As a typical example, a Mach-Zehnder interferometer with coherent laser source is build up in VirtualLab Fusion, with the help of non-sequential field tracing. It is demonstrated that how the tilt and shift of an optical elements may affect the interference fringe pattern.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Use Case

Fizeau Interferometer for Optical Testing

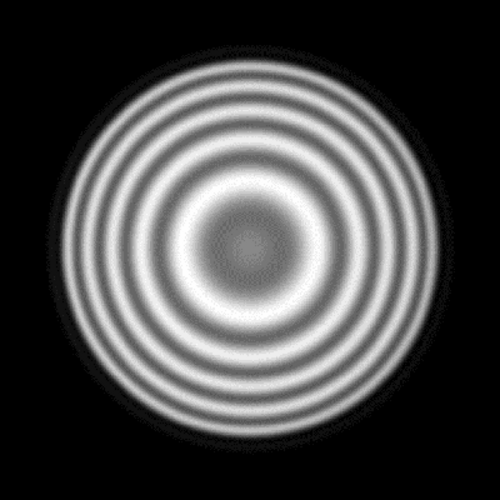

A Fizeau interferometer is set up with the help of non-sequential field tracing technology, and the interference fringes from several different test surfaces are shown.

Use Case

Laser-Based Michelson Interferometer and Interference Fringe Exploration

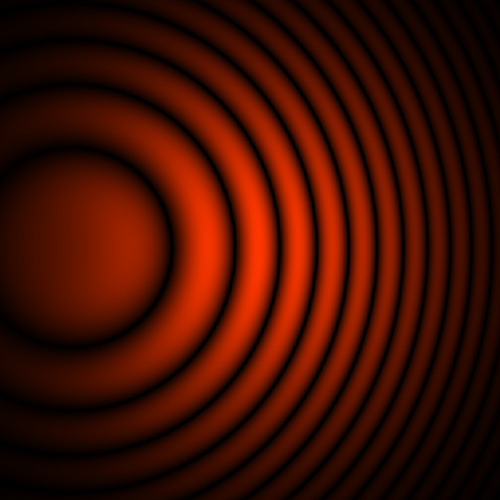

A Michelson interferometer is set up with the help of non-sequential tracing technology in VirtualLab Fusion, and the interference fringes in different configurations are demonstrated.
