Design of 2D Non-Paraxial Beam-Splitting Metagrating

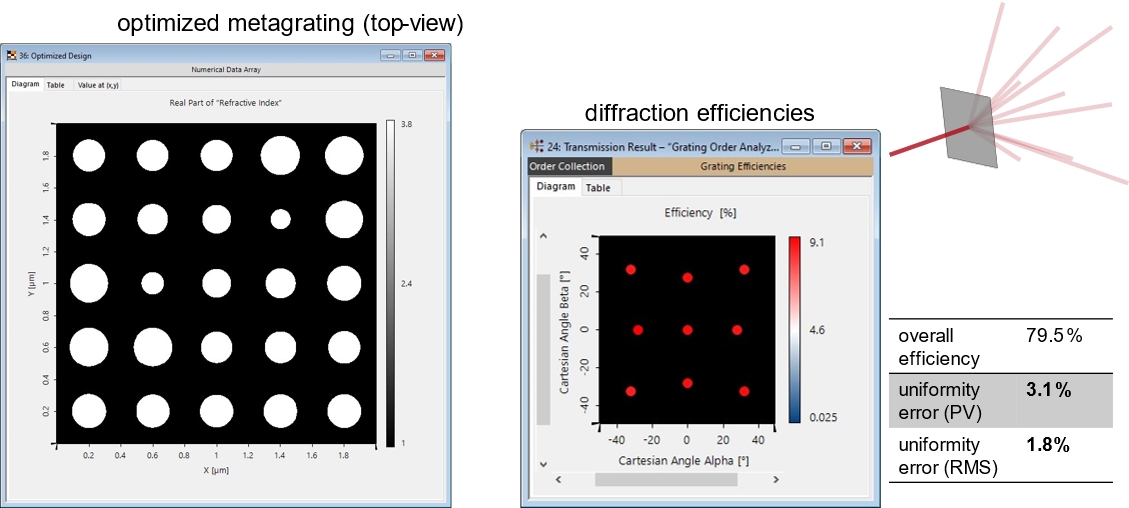

Metagratings are shown to have advantages when comparing with traditional gratings, especially in non-paraxial cases. In this example, we design a two-dimensional (2D) metagrating that splits the input into 3x3 beams. The metagrating is constructed with circular nano pillars, and in VirtualLab Fusion, we use FMM/RCWA to evaluate the diffraction efficiency of the metagrating. And, we show how to use the parametric optimization tool to improve the uniformity of the diffraction efficiencies.
