Rigorous Analysis of Nanopillar Metasurface Building Block

Abstract


With advanced fabrication techniques, people have demonstrated metalenses for visible wavelengths with high numerical apertures. A metalens is usually constructed with spatially varying nanostructures as its building blocks. In this example, we analyze the nanopillar structure which is used to compose polarization-insensitive metalenses. With the Fourier modal method (FMM, also known as RCWA), the amplitude and phase transmission of such nanopillars are calculated rigorously.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion
  • Grating Package Grating Package

Are you interested in further reading?

Tutorial

Investigation of Polarization State of Diffraction Orders

VirtualLab Fusion enables the detailed analysis of grating structures, with possible changes in the polarization state of the diffracted orders taken into consideration.

Use Case

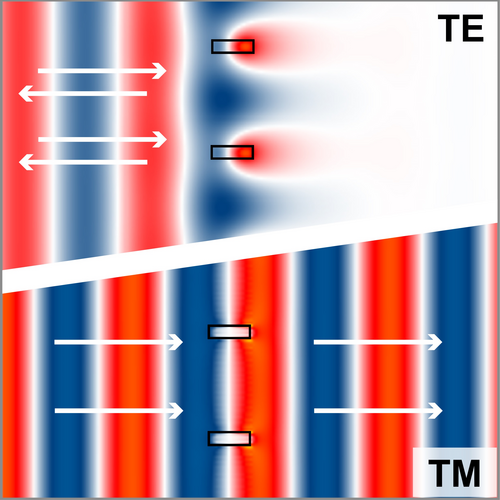

Ultra-Sparse Dielectric Nano-Wire Grid Polarizer
