System Analysis with Sequential and Non-Sequential Field Tracing

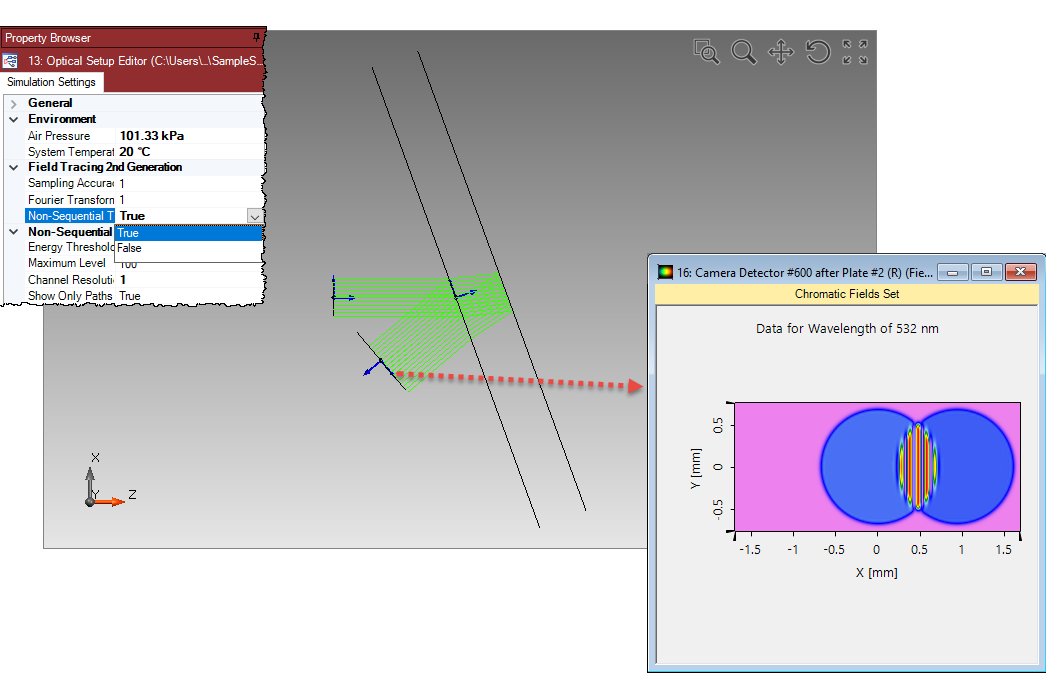

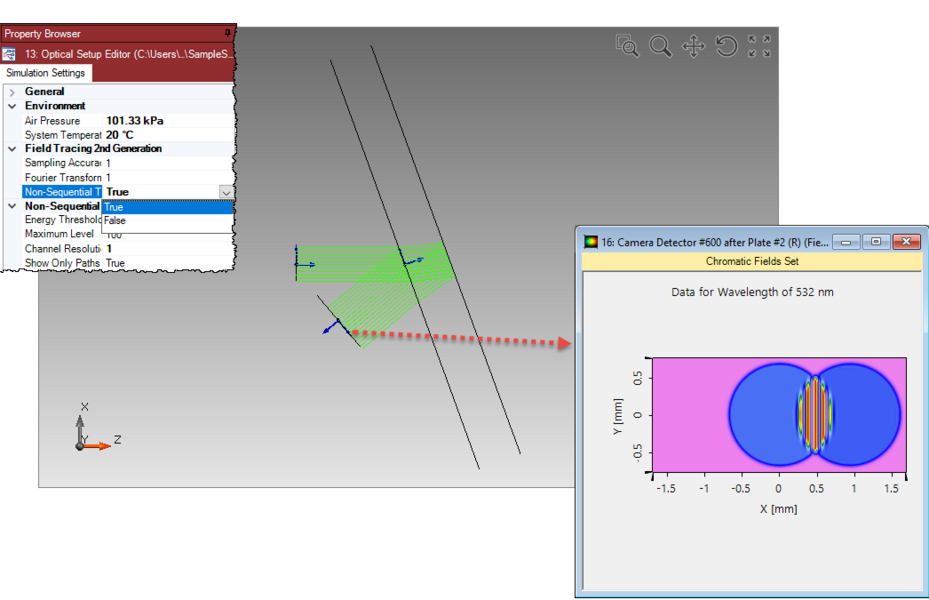

VirtualLab Fusion enables the user to build up an optical system once and analyze it with different tracing techniques. This includes ray tracing as well as field tracing. With the non-sequential extension of VirtualLab Fusion it is easy to switch between sequential and non-sequential analysis of the optical setup. This use case demonstrates how the non-sequential analysis of your setup can be performed. For demonstration, we will use a plate with a slightly tilted plane on the second surface as an example.

• Use Case (PDF)pdf23.10.2021
• Use Case and sample files in VirtualLab Fusion (ZIP)zip23.10.2021
