Programming a Chirped Gaussian Pulse Spectrum

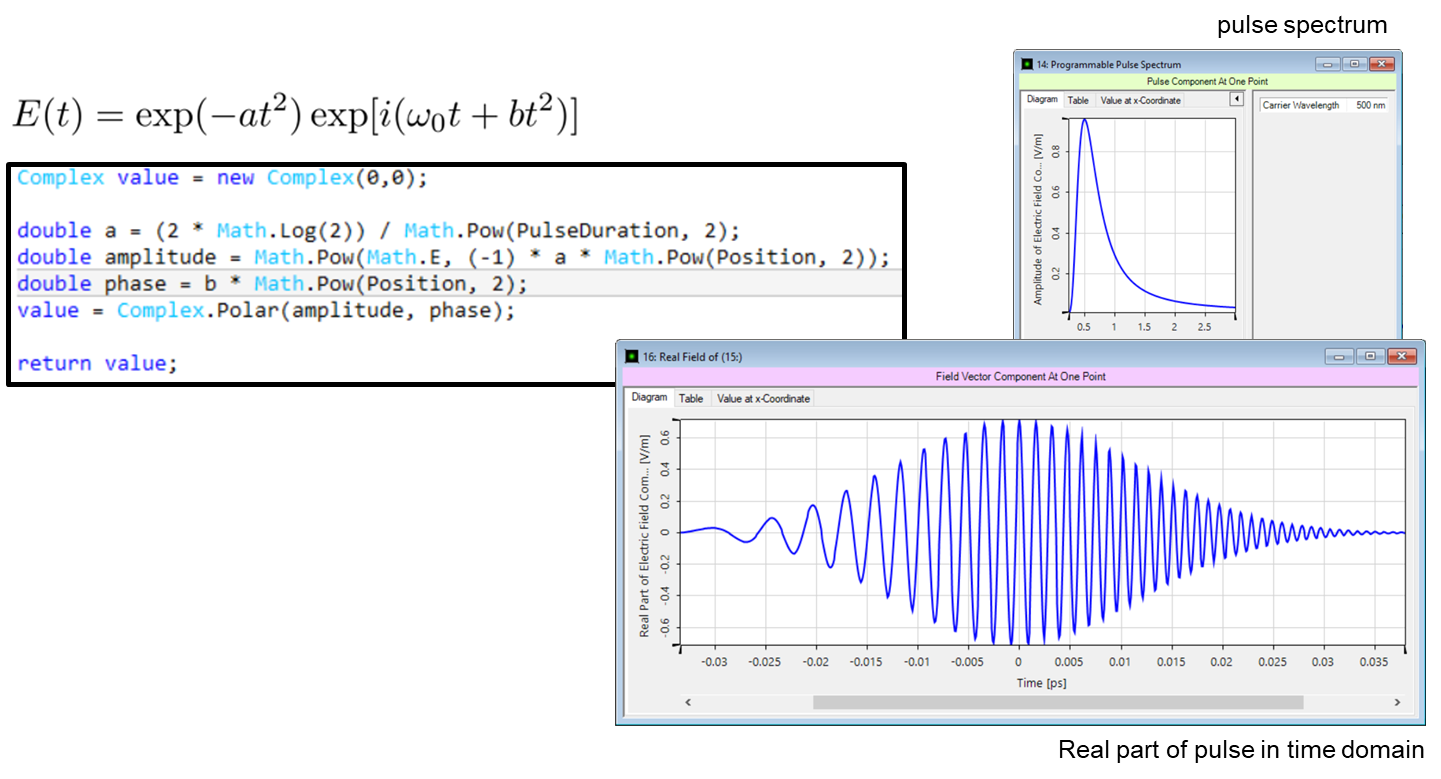

VirtualLab Fusion provides the freedom to define the pulse spectrum, using the Programmable Pulse Spectrum. The generated spectrum can be used in combination with existing spatial source models. Users can not only specify a spectrum directly in frequency domain, but also possible in time domain, and VirtualLab will automatically calculate the corresponding spectrum. This example shows how to generate a chirped Gaussian pulse, with the specification given in time domain.
