Parametric Optimization of a Half-Symmetric Two-Mirror Resonator

Abstract

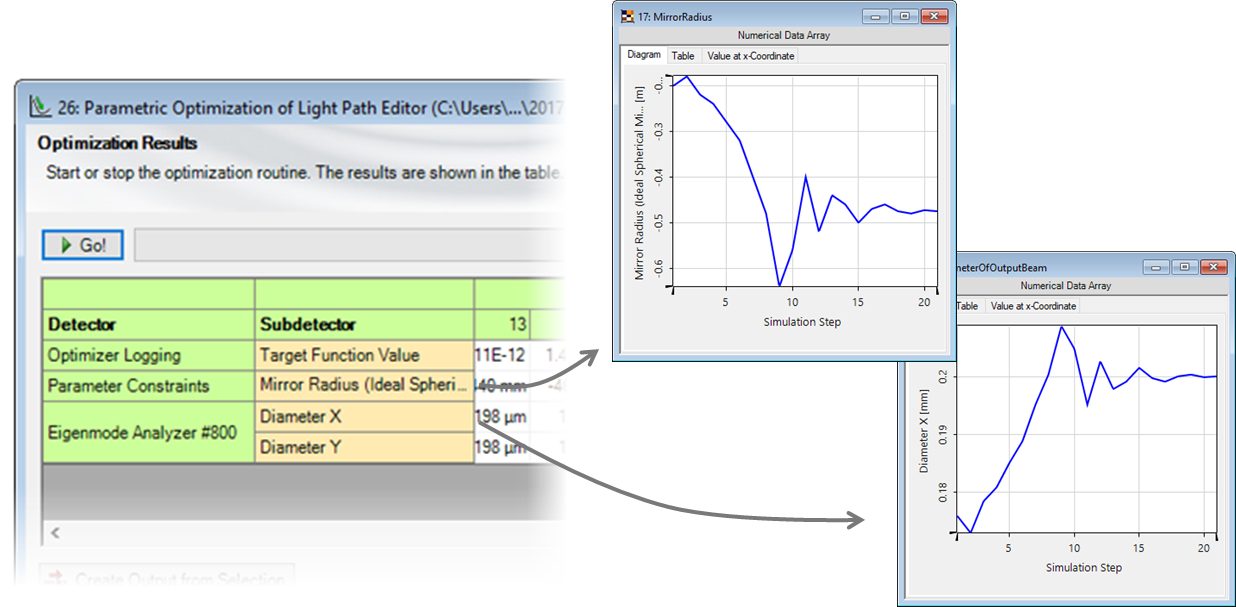

In VirtualLab Fusion, users can easily construct a two-mirror laser resonator, and analyze the eigenmodes of it. In case of designing a resonator to generate a desired eigenmode, one can use the tool of parametric optimization conveniently.

This tutorial shows firstly how to construct a half-symmetric resonator and analyze the eigenmodes of it, and then how to use parametric optimization for the design / optimization of this resonator.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion
  • Laser Resonator Package Laser Resonator Package
