Import and Export of Chromatic Fields Sets

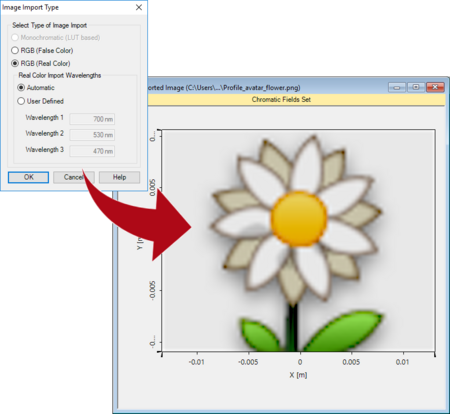

The standard detector within optical setups in VirtualLab Fusion is the camera detector. This detector calculate the energy density distribution and shows the calculated distribution by a chromatic fields set. For further processing it might be important to export this information to a text-based format. In addition chromatic fields sets can be used to specify the pixel distribution of the panel type source. Therefor it is also necessary to have an import option of bitmaps into a chromatic fields set. This use case demonstrates the options for import and export chromatic fields sets.
