How to Set Up a Panel-Type Source

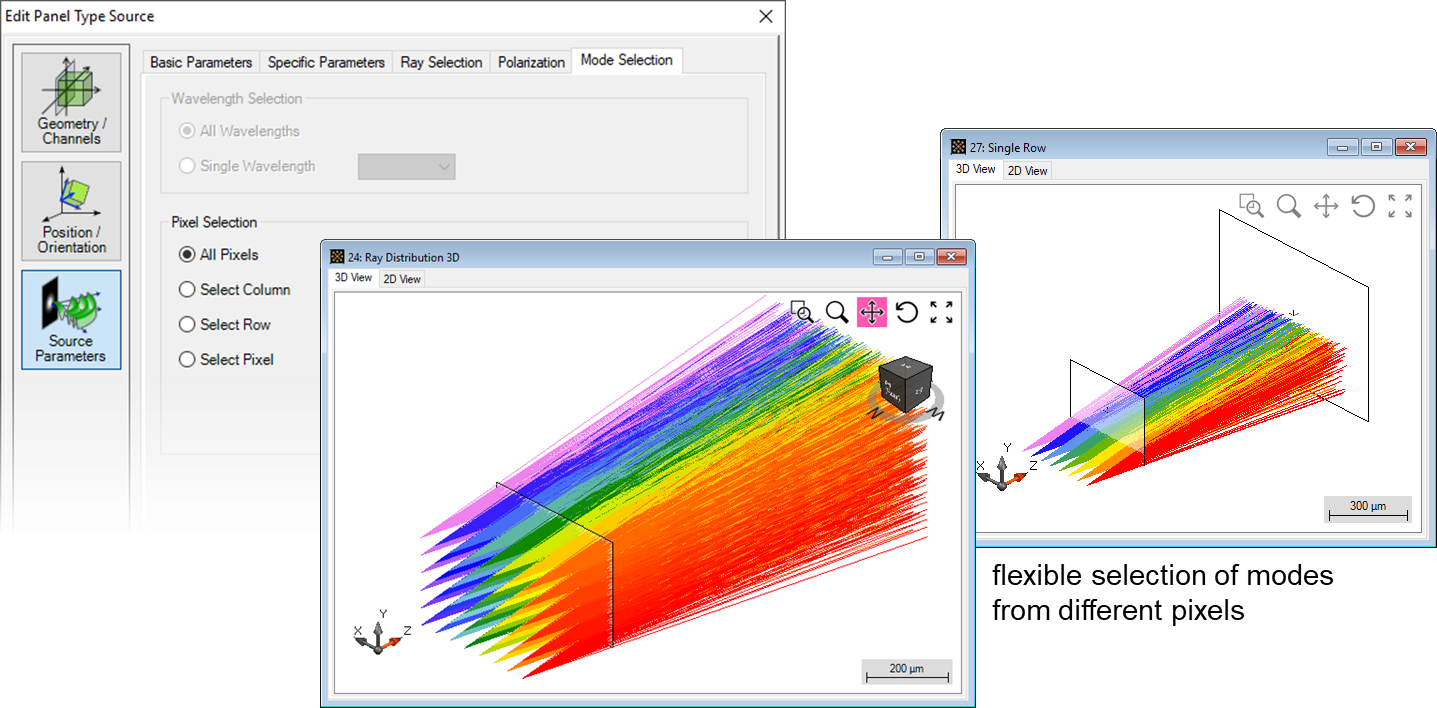

By using the panel-type source in VirtualLab Fusion, it is possible to model a pixelated display as in the reality. The panel-type source can be defined by given number of pixels and pixel pictches, and each pixel is emitting a spherical wave with adjustable opening angle. Together with ParameterRun, all pixels can be scanned, and one can choose the scanning modes flexibly for specific applications, e.g., for the analysis of imaging system with a pixelated image generation unit.
