Export Harmonic Fields Set to ASCII Files

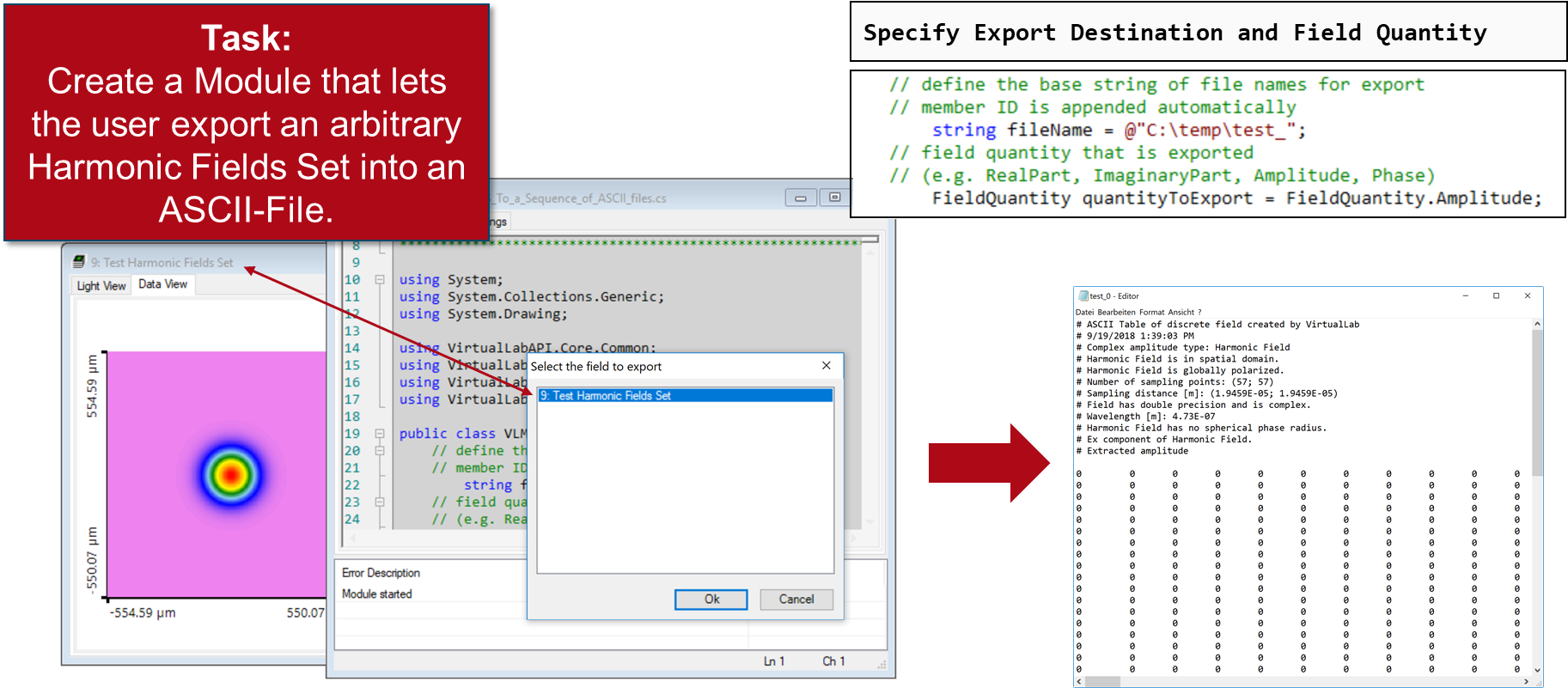

The universal format ASCII is widely used to save physical data like e.g. the amplitude of electromagnetic fields. Therefore we want to demonstrate a programmable module that can export Harmonic Fields Sets into ASCII format. By using this module, it is possible to specify the export file destination and field quantity for the export. A test Harmonic Fields Set is provided as an example for the export function.

• Use Case (PDF)pdf18.11.2019
• Use Case and sample files in VirtualLab Fusion (ZIP)zip18.11.2019
