Automatized Detector Positioning by using Parameter Coupling​

Abstract

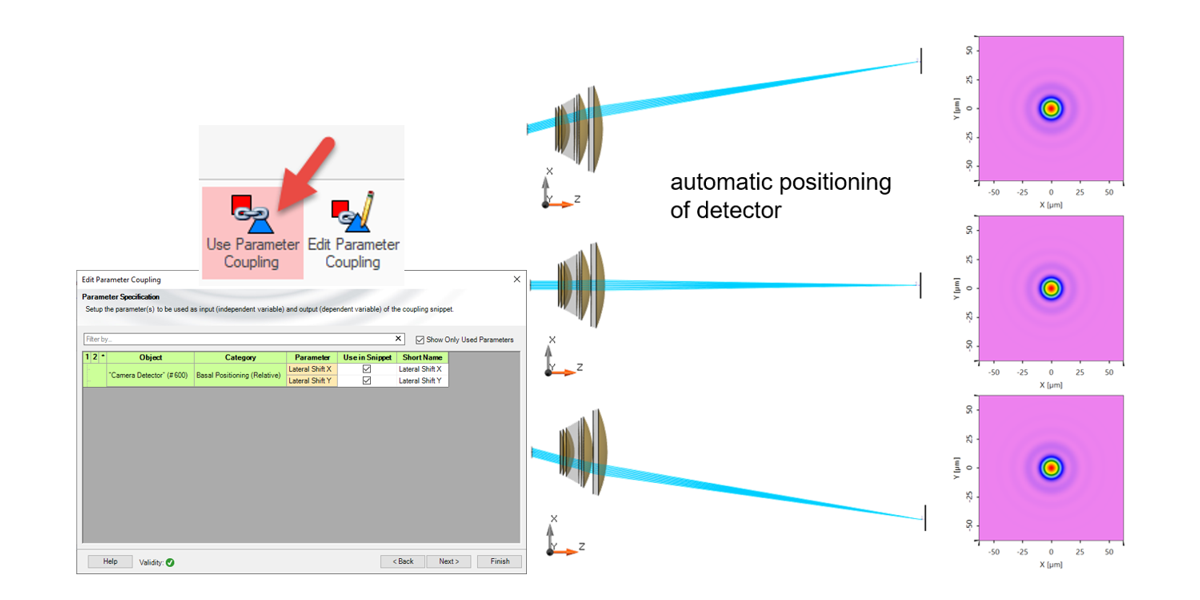

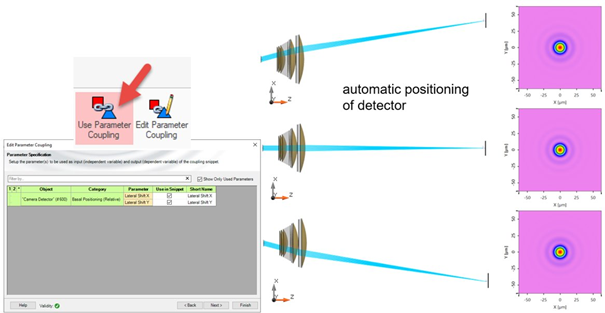

In this example, the focus (PSF) of an F-theta objective is investigated for certain angles of incidence. In order to avoid the superfluous computational effort introduced by the shift of the resulting foci with off-axis illumination, the detector position is shifted according to the main propagation direction of the light. VirtualLab’s Parameter Coupling tool is applied to automatically handle this adjustment of the detector position.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Use Case

Performance Analysis of Laser Scanning System

A scanning system consisting a dual-axis galvanometer and an aspherial focusing lens is modeled, with the rotation of the mirrors taken into simulation as in the practical case.
