Animation Generation from Chromatic Fields Sets in Parameter Run

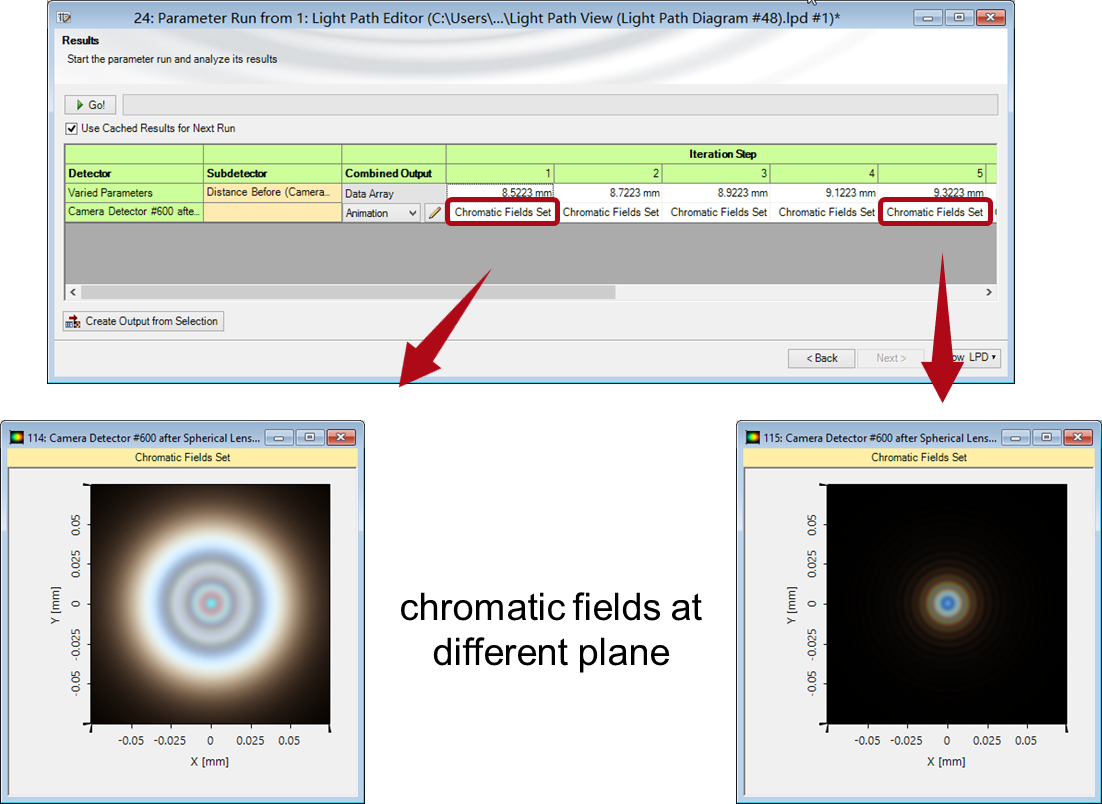

The parameter run can be used to perform a parameter series analysis of an optical setup. A very typical detector within VirtualLab Fusion is the camera detector which generates a chromatic fields set, showing the energy density distribution in the detector plane in real and false color view. This use case demonstrates how easy it is to convert a set of chromatic fields sets into an animation to get a rough overview on the detector signal in form of a movie. Several output options will be discussed.
