Parameter Variation Analyzer

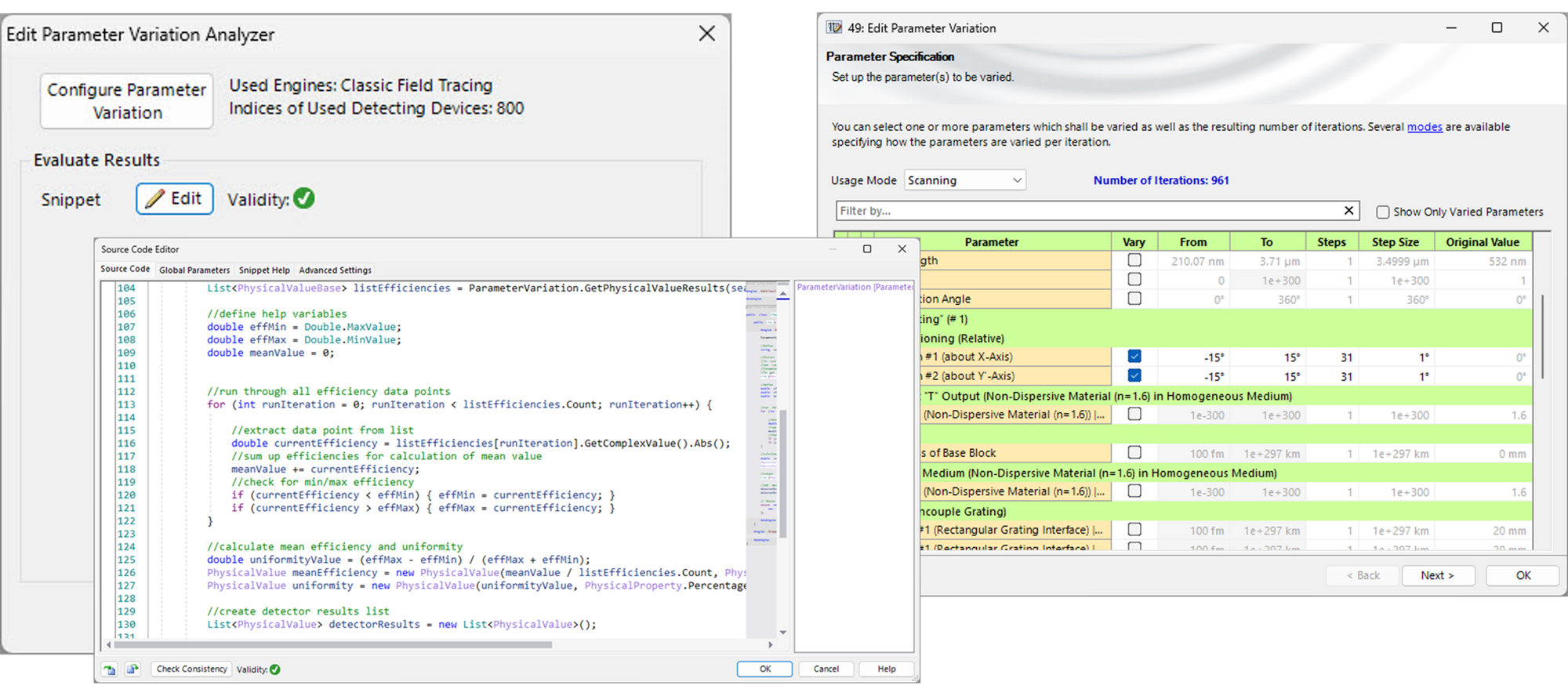

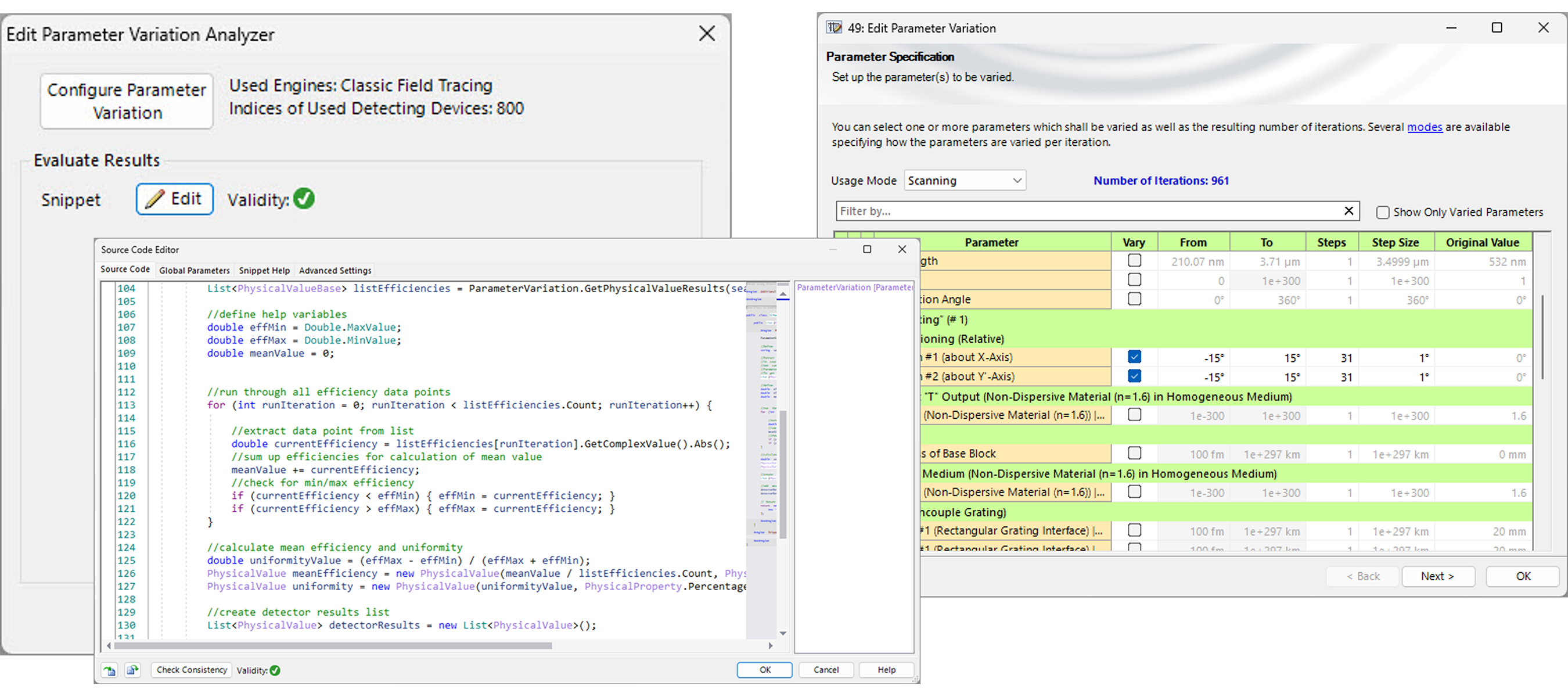

In the process of designing, optimizing and tolerancing complex optical systems is often desirable to analyze characteristics for a set of different system parameters, not just a single configuration. Parameter Runs are the designated tool to sweep the of a system in a desired parameters space, but in case of multiple parameters sets, the detailed evaluation and the definition of merits does not allow direct further processing. The new Parameter Variation Analyzer is the right tool to close this gap. With this analyzer you can basically analyze the entire system and further process the data obtained. This is very useful, among other things, when a large amount of data is generated, but the evaluation requires only well-defined quality functions, which are then used in a next step of the analysis or optimization.
- Use Case (PDF) pdf 10.11.23
- Use Case and sample files in VirtualLab Fusion (ZIP) zip 10.11.23
