Mach-Zehnder Interferometer with Laterally-Varying Beam Splitter Cube
Abstract

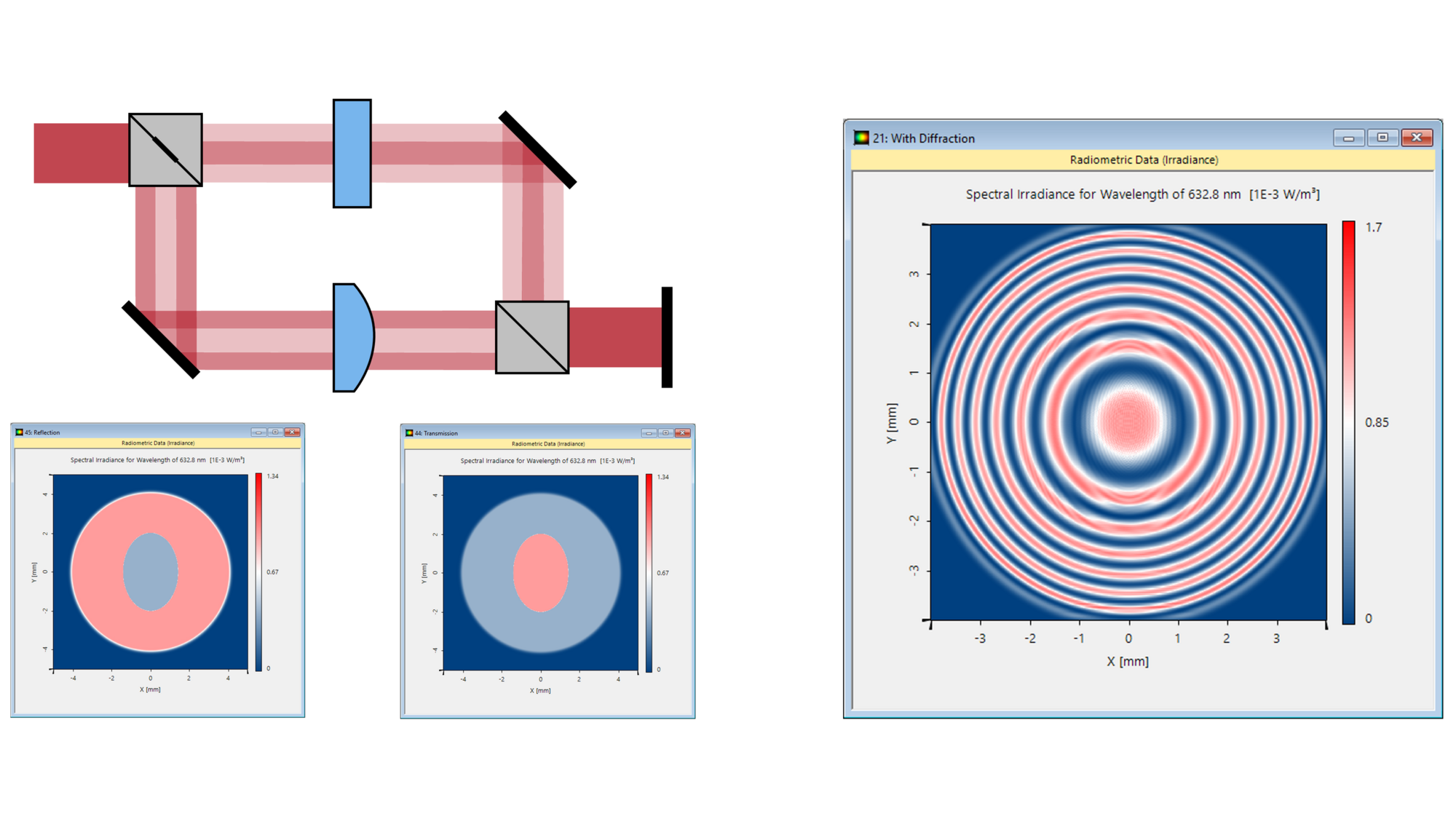

We simulate a Mach-Zehnder interferometer using a beam splitter with independently adjustable inner and outer regions. A lens in one arm produces interference pattern, while diffraction from the edges of the beam-splitter regions influence these effects. By varying the reflectivity, the resulting interference pattern changes according to the configuration.
