Aberration Effects on Focused Modes from a Fiber Source

Abstract

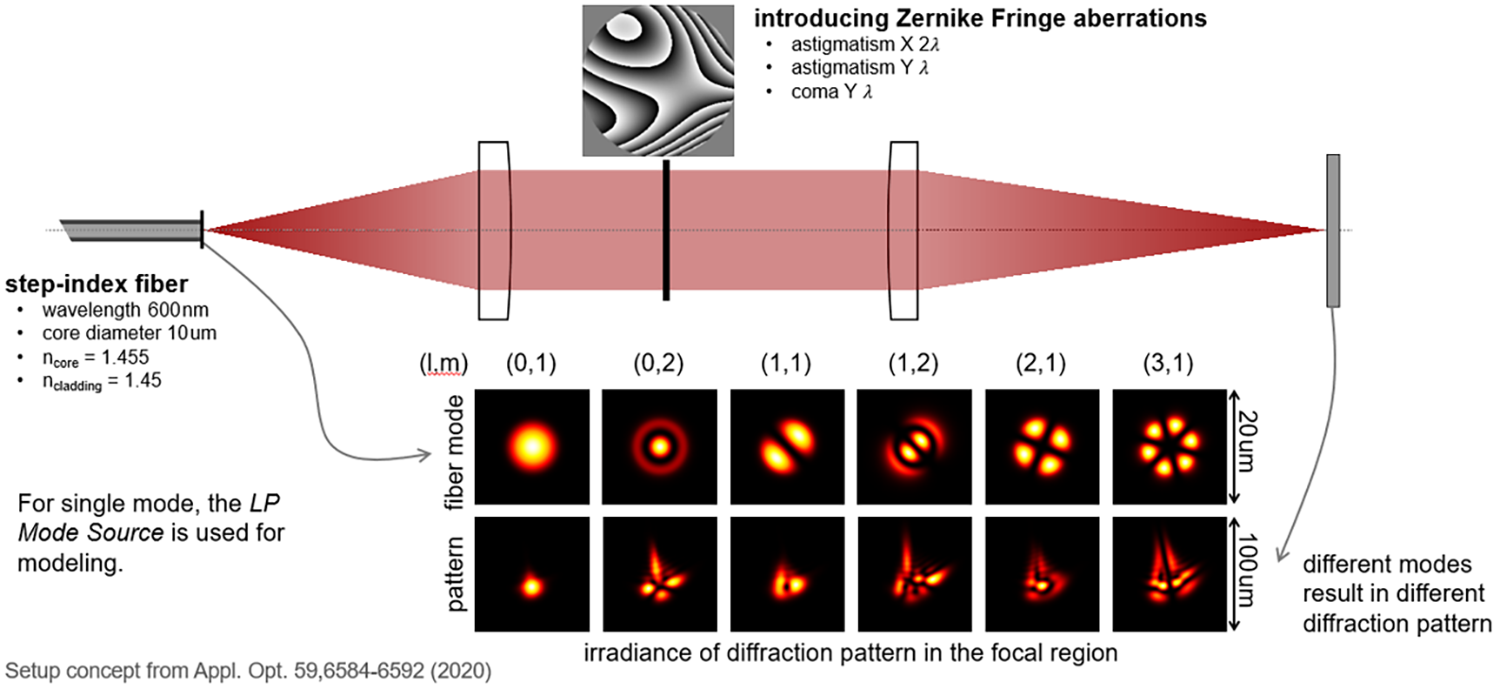

Fibers are widely used as sources in optical systems. Investigating the effects of the aberrations of an optical system on the propagation of the fiber modes is therefore of interest. In this use case we employ the fast physical optics engine in VirtualLab Fusion to demonstrate how the shape of a set of modes generated by either a step- or graded-index fiber, and the total field resulting from their combination, is affected by propagation through an aberrated optical system.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Tutorial

LP Fiber Mode Calculator

The Fiber Mode Calculator can be used to calculate linearly polarized (LP) propagation modes in a step-index fiber with a single core or graded-index fiber.

Use Case

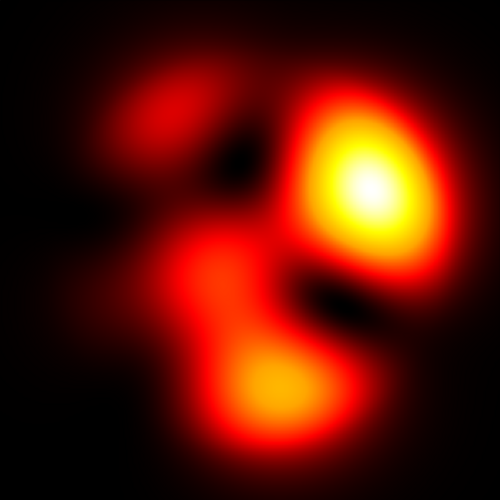

Few-Mode Fiber Coupling under Atmospheric Turbulence

In this use case, we reproduce the experiments of Zheng et al. [Opt. Express 24 (2016)] to explore the atmospheric turbulence effects on the coupling efficiency between the free-space optical beam and few-mode fibers.
