Moiré Fringes Generation

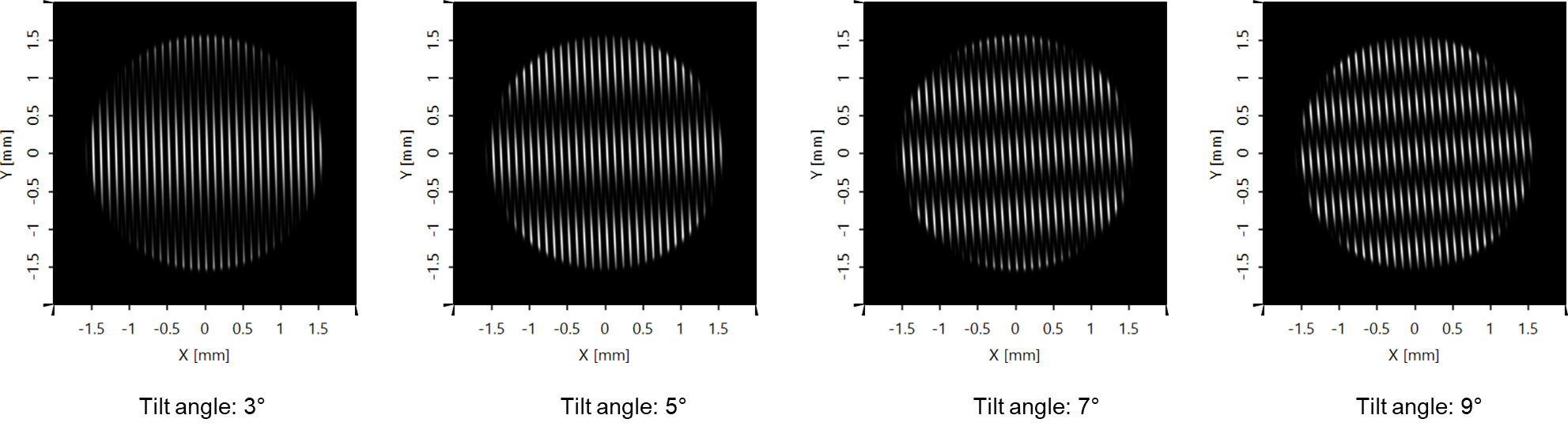

In this Demo we seek to model Moiré pattern generated by periodic apertures and gratings. Moiré fringes are one of the interference effects which occur due to overlaying of a periodic pattern with another periodic pattern containing displacement, tilt or even different pitch size. Physical optics provides fast analysis of interference pattern.
- Demo (PDF) pdf 06.10.20
- Demo and sample files in VirtualLab Fusion (ZIP) zip 06.10.20
