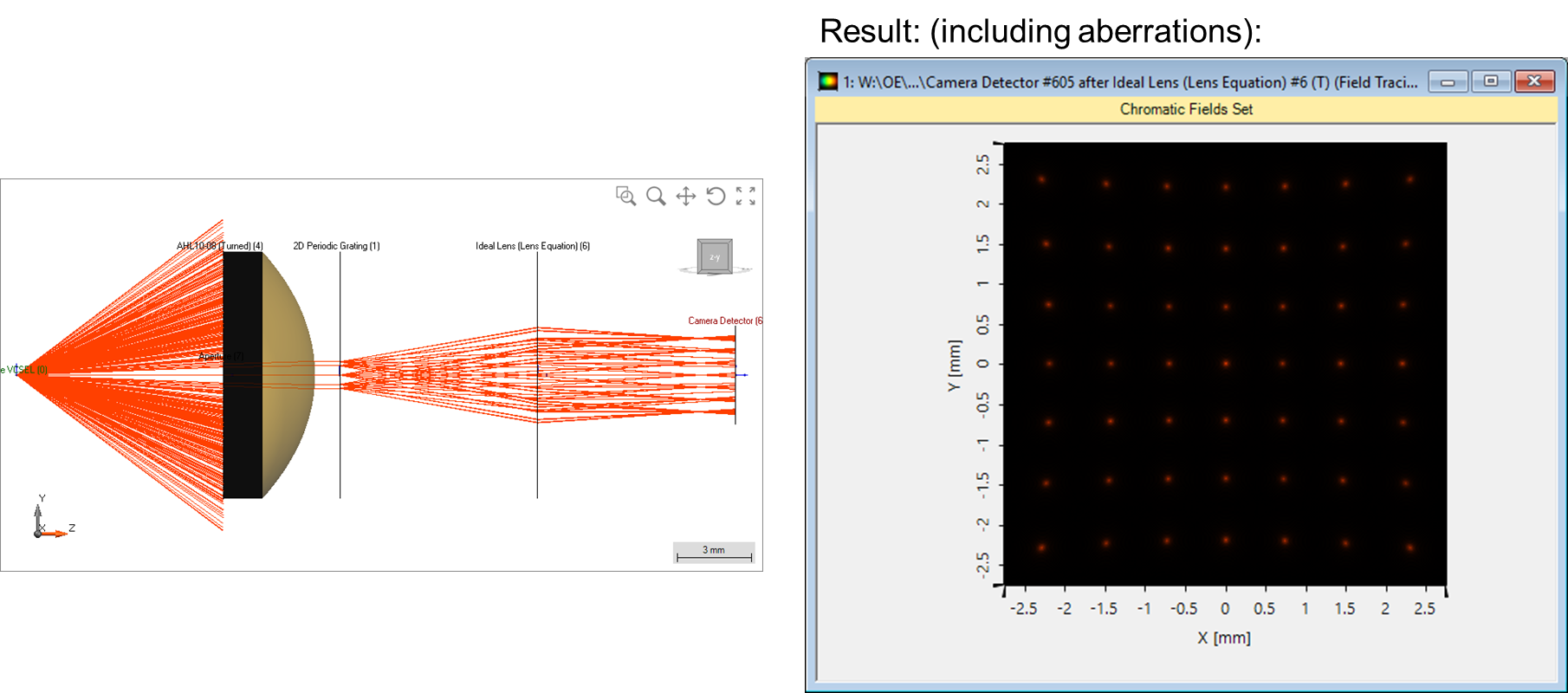

7x7 Beam Splitter in 2f Setup with a VCSEL Source

Diffractive elements like beam splitters can be modeled in complex optical systems. Efficiencies are evaluated rigorously, e.g. by Fourier Modal method (FMM), RCWA, respectively. Physical optics enables the access to any kind of light information in the desired image plane.
