Import Optical Systems from Zemax OpticStudio®

Abstract

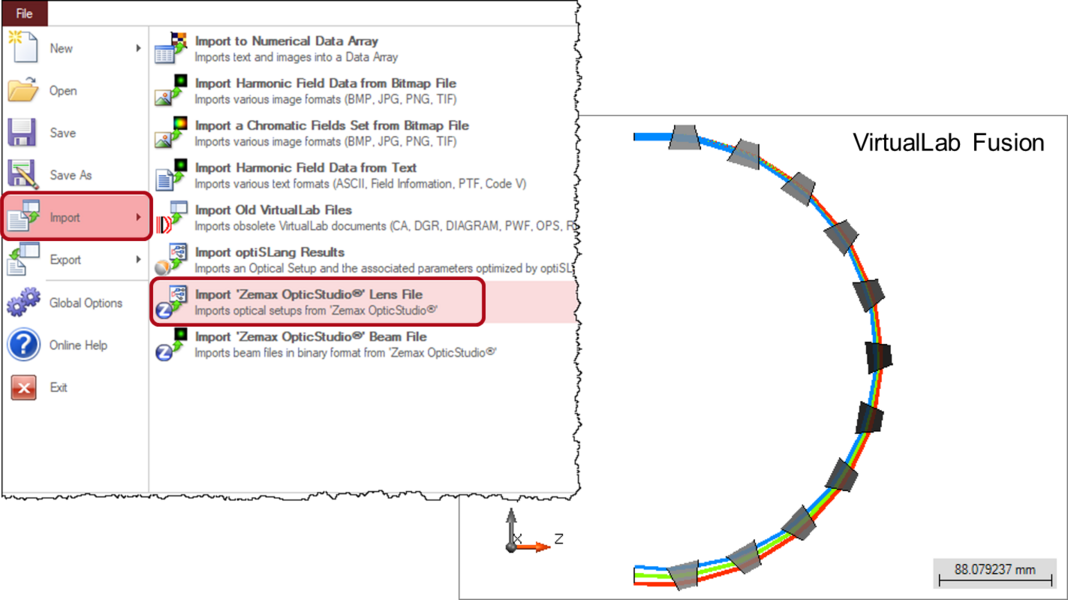

Zemax OpticStudio® is a well-distributed ray tracing software. VirtualLab Fusion allows to import optical systems with full 3D position information and glasses from Zemax OpticStudio®. After the import, the structure data of the optical system will be shown either as single surfaces, or can be combined into components in VirtualLab Fusion. One can perform ray tracing simulation of the imported optical system, and more importantly, field tracing could be performed to further analyze the system.

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Use Case

Design and Analysis of Intraocular Diffractive Lens

We show the import of an intraocular diffractive lens design (Zemax OpticStudio®) into VirtualLab Fusion and optimize the structure for better performance.

Tutorial

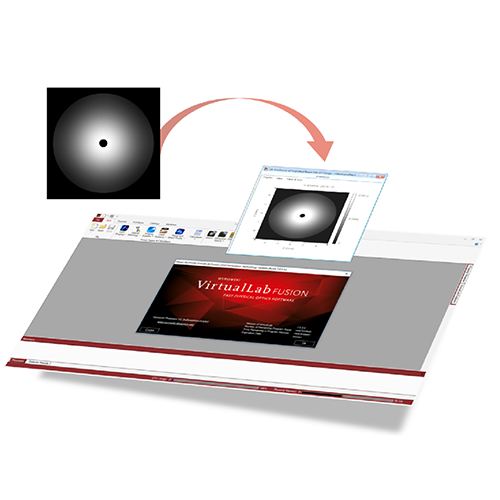

Import Beam Files from Zemax OpticStudio
