Gaussian Beam Focused by a Thermal Lens

Abstract

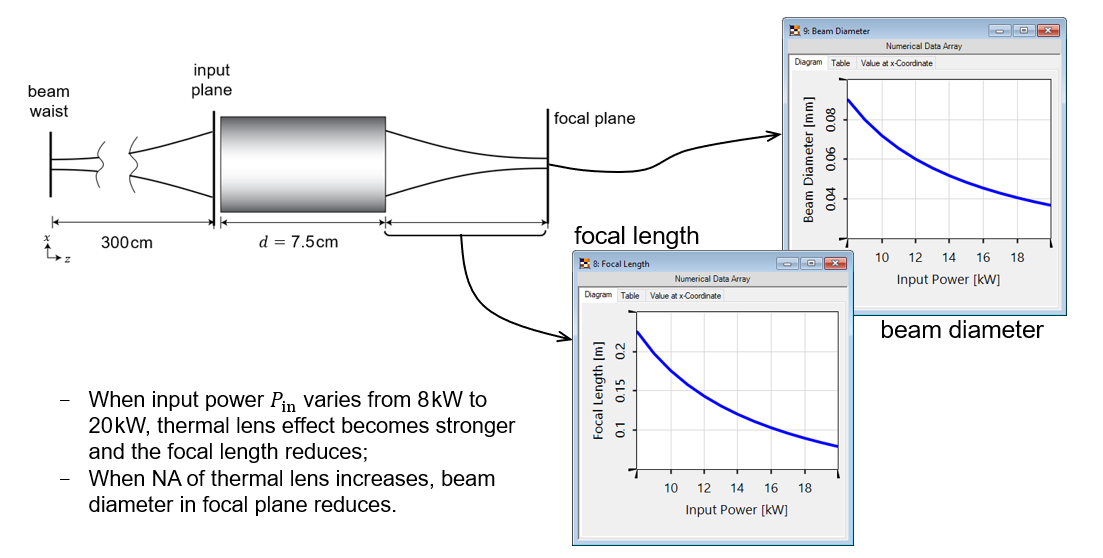

Thermal lens effect describes the inhomogeneity of refractive index of medium, which is induced by thermal gradient of a high-power incident laser beam. For a Gaussian beam with specified parameters, the refractive index is mathematically represented as a function of temperature and input power [W. Koechner, Appl. Opt. 9, 2548–2553 (1970)]. This use case shows the variation of the focal length of the thermal lens, as well as the focus beam diameter when the input power changes. This example is published in [H. Zhong, J. Opt. Soc. Am. A 35].

VirtualLab Fusion Configuration

  • VirtualLab Fusion VirtualLab Fusion

Are you interested in further reading?

Use Case

Modeling of Graded-Index (GRIN) Multimode Fiber

A fast approach for light propagation through a GRIN medium, which includes the polarization crosstalk effect, is implemented, and its validity and advantages are shown in comparison with a rigorous solver.

Tutorial

Construction and Modeling of a Graded-Index Lens

VirtualLab Fusion allows for the specification of a graded-index lens in a very user-friendly way. In addition, such index-modulated lenses can be analyzed by ray tracing as well as by field tracing.
